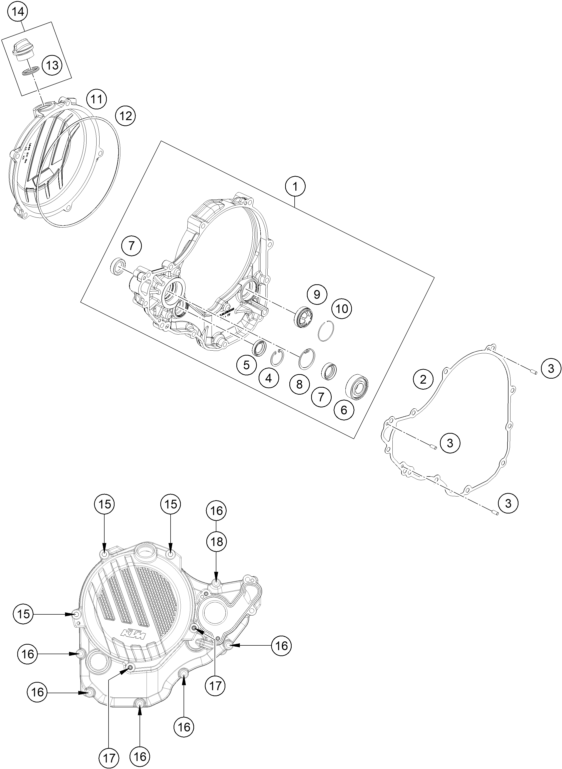

350 SX-F (2020) KÅPA KOPPLING
SAMTLIGA DELAR
ORIGINALDELAR
EFTERMARKNADSDELAR
1
79230001044 Lagerstatus: 1-3
CLUTCH COVER CPL.
2655:-
2
79230025100 Lagerstatus: 4-6
CLUTCH COVER GASKET
190:-
3
0402040980 Lagerstatus: 1-3
NEEDLE ROL.DIN5402 NRB 4X9,8, Åtgår 3st
15:-
4
0472024120 Lagerstatus: 4-6
CIRCLIP DIN0472-24X1.2
15:-
5
0760142450 Lagerstatus: 9
SHAFT SEAL RING 14X24X5 VITON
85:-
6
0625062022 Lagerstatus: 1-3
BALL BEARING 6202 C0 2
125:-
7
07601530451 Lagerstatus: 21
SHAFT SEAL RING 15X30X4.5 BAUD, Åtgår 2st
55:-
8
0472300120 Lagerstatus: 4-6
CIRCLIP 30X1,2
15:-
9
59030019200 Lagerstatus: 4-6
OIL SIGHT GLASS
145:-
10
61030019050 Lagerstatus: hos lev.
CIRCLIP OIL LEVEL GLASS 03
15:-
11
7923002600015 Lagerstatus: 1-3
CLUTCH OUTSIDE COVER
990:-
12
79230027000 Lagerstatus: 4-6
CLUTCH COVER GASKET OUTSIDE
120:-
13
0770191015 Lagerstatus: 19
O-RING 19,00X3,00 NBR
15:-
14
79430020033 Lagerstatus: 10
OIL FILLER CAP M24x3 WITH O-R
110:-
15
0025060456 Lagerstatus: 8
HH COLLAR SCREW M6X45 TX30, Åtgår 3st
20:-
16
0025060256 Lagerstatus: 28
HH collar screw M6x25 TX30, Åtgår 6st
20:-
17
0025060206 Lagerstatus: 33
HH collar screw M6x20 TX30, Åtgår 2st
20:-
18
0603061001 Lagerstatus: 20
CU-SEAL RING DIN7603-6X10X1
15:-
