150 SX (2020)

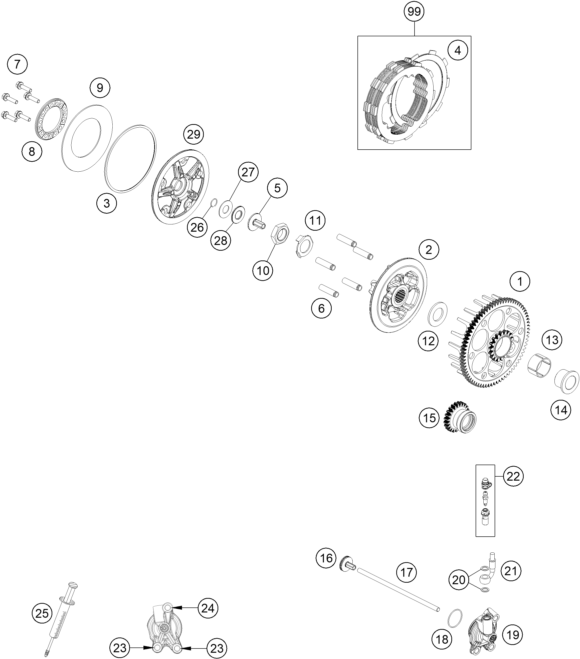

KOPPLING
KOPPLING 1
50532001073 Lagerstatus: hos lev.
clutch basket SX
3275:-
2
50532002000 Lagerstatus: hos lev.
Inner clutch hub
995:-
3
50532013000 Lagerstatus: 1-3
Inner ring
215:-
4
50532011000 Lagerstatus: 1-3
Friction plate 1.95 mm, Åtgår 7st
185:-
5
78032057044 Lagerstatus: 1-3
PRESSURE PIECE
270:-
6
50532004100 Lagerstatus: 1-3
Sleeve 7.95x31.65, Åtgår 5st
45:-
7
0025050206 Lagerstatus: 11
HH collar screw M5x20 TX30, Åtgår 5st
20:-
8
50532006000 Lagerstatus: 1-3
Spring plate
505:-
9
50532005000 Lagerstatus: 1-3
Clutch spring
165:-
10
0936181505 Lagerstatus: 10
HEXAGON NUT DIN0936-M18X1,5 R.
45:-
11
78132018100 Lagerstatus: 4-6
locking plate
60:-
12
50532017000 Lagerstatus: hos lev.
Supporting plate 20x36x2.5
100:-
13
0405263017 Lagerstatus: 7
Needle cage K263017
80:-
14
50532015000 Lagerstatus: hos lev.
Collar 20x26x19,5
195:-
15
50532023023 Lagerstatus: 1-3
gear primary drive
1135:-
16
78032057044 Lagerstatus: 1-3
PRESSURE PIECE CPL. 08
270:-
17
50532054000 Lagerstatus: 10
Push rod
145:-
18
0770300015 Lagerstatus: 15
O-RING 30,00X1,50 NBR 70
15:-
19
79232061044 Lagerstatus: 1-3
OUTPUT CYLINDER CPL.
1595:-
20
0603082121 Lagerstatus: 10
SEAL RING CU DIN7603- 8X12X1, Åtgår 2st
15:-
21
79232063000 Lagerstatus: 1-3
CLUTCH PIPE
950:-
22
79032064000 Lagerstatus: 1-3
BLEEDER SCREW CPL.
200:-
23
0025060166 Lagerstatus: 25
HH collar screw M6x16 TX30, Åtgår 2st
20:-
24
0025060256 Lagerstatus: 28
HH collar screw M6x25 TX30
20:-
25
50329050000 Lagerstatus: 9
VENT INJEKTION HYDR. CLUTCH
185:-
26
0993012000 Lagerstatus: 7
CIRCLIP DIN7993-RW12
15:-
27
54637098200 Lagerstatus: 1-3
AXIAL WASHER AS1226 12X26X1
30:-
28
54637097200 Lagerstatus: 4-6
AXIAL NEEDLE BEARING AXK 1226
70:-
29
50532003000 Lagerstatus: 1-3
Preasure plate
670:-
99
50532010033 Lagerstatus: 1-3
Clutch disc pack
1875:-
