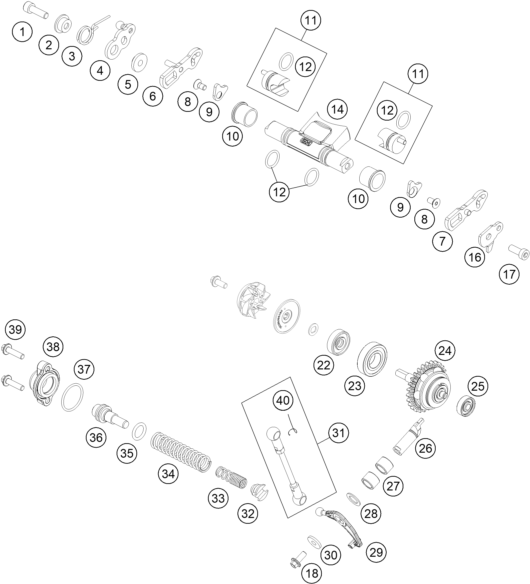

150 SX (2020) AVGASPORT MEKANISM
SAMTLIGA DELAR
ORIGINALDELAR
EFTERMARKNADSDELAR
1
0912060203 Lagerstatus: 17
AH SCREW DIN0912-M 6X20
15:-
2
54637067000 Lagerstatus: 1-3
SPRING SLEEVE
30:-
3
54637066000 Lagerstatus: 1-3
OVERLOAD SPRING
30:-
4
54637065000 Lagerstatus: 1-3
CONTROL LEVER WITH BALL TYPE
190:-
5
54637068100 Lagerstatus: 1-3
BUSHING SLEEVE
60:-
6
50437065044 Lagerstatus: hos lev.
SLOTTED LEVER R/S
290:-
7
50437064044 Lagerstatus: hos lev.
SLOTTED LEVER L/S
290:-
8
0019050106S Lagerstatus: 10
hex lobe countersunc screw M5x, Åtgår 2st
20:-
9
50437079100 Lagerstatus: 1-3
LOCK PLATE, Åtgår 2st
100:-
10
50437023100 Lagerstatus: 10
exaust flap bushing, Åtgår 2st
60:-
11
51737061044 Lagerstatus: hos lev.
Power valve cmpl., Åtgår 2st
420:-
12
0770140201 Lagerstatus: 10
O-RING 14X2 FPM 75SH, Åtgår 4st
30:-
14
51637020000 Lagerstatus: hos lev.
EXHAUST FLAP
600:-
16
50437085000 Lagerstatus: 1-3
STOP PLATE
60:-
17
0912060163 Lagerstatus: 7
AH SCREW DIN0912-M 6X16
15:-
18
0014050123 Lagerstatus: 4-6
HH COLLAR SCREW M 5X12 WS=6
20:-
22
0760082472 Lagerstatus: 4-6
SHAFT SEAL RING 8X24X7 A DUO
45:-
23
0625160020 Lagerstatus: 4-6
BALL BEARING 16002 C3
125:-
24
50537050144 Lagerstatus: 1-3
Centrifugal force unit
1525:-
25
54637098100 Lagerstatus: hos lev.
BALL BEARING 626LLBC3/5K
85:-
26
50437057100 Lagerstatus: 1-3
ADJUSTING LEVER 125/150 2016
340:-
27
0618101410 Lagerstatus: 1-3
needle sleeve HK 1010 10x14x10, Åtgår 2st
50:-
28
0988101610 Lagerstatus: 1-3
SHIM WASHER DIN988 10X16X1
10:-
29
47237056100 Lagerstatus: 1-3
angle lever
345:-
30
0349000050 Lagerstatus: 1-3
WASHER DIN7349-5X15X2
10:-
31
50437095044 Lagerstatus: 1-3
CONNECTING ROD CPL.
145:-
32
54637071200 Lagerstatus: hos lev.
SPRING INSERT
100:-
33
50437069050 Lagerstatus: 1-3
SUPPORT SPRING
25:-
34
54637072000 Lagerstatus: hos lev.
ADJUST.SPRING L=65MM D=1,8MM
65:-
35
0770021120 Lagerstatus: 1-3
O-RING 12,37X2,62 NBR70
15:-
36
54837075000 Lagerstatus: 1-3
SPRING GUIDE 250/300
115:-
36
35-89 Lagerstatus: 4-6
EMX EE Avgasportsnyckel KTM 25... mer info



EMX EE Avgasportsnyckel KTM 25

Dölj ytterligare info
125:-
37
0770240020 Lagerstatus: 4-6
O-RING 24,00X2,00 NBR70
15:-
38
54637070300 Lagerstatus: hos lev.
Closing cover 250-360
305:-
39
0014050203 Lagerstatus: 15
HH COLLAR SCREW M 5X20 WS=6, Åtgår 2st
20:-
40
50237195055 Lagerstatus: 8
SECURING DIN-71805-S-8
15:-
