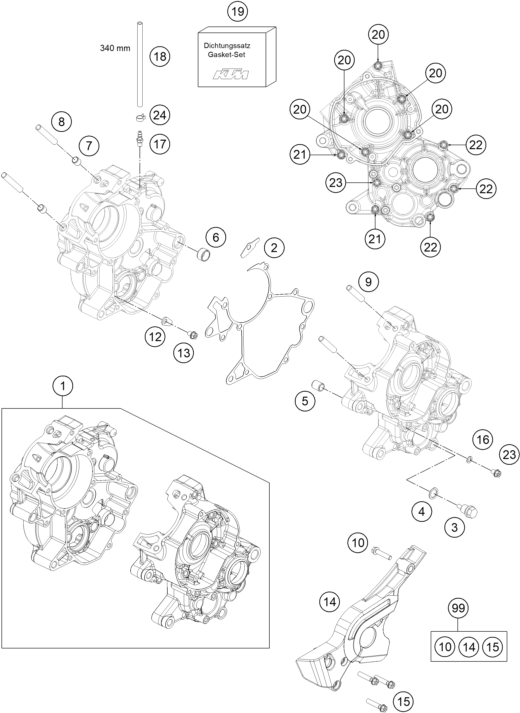

1
46230000244 Lagerstatus: hos lev.
ENGINE CASE CPL. WITH BEARING
8795:-
2
46230039000 Lagerstatus: 4-6
ENGINE CASE GASKET
180:-
3
58030021100 Lagerstatus: 25
OILDRAIN PLUG W.MAG. M 12X1,5
110:-
4
58038022000 Lagerstatus: 340
CU-SEAL RING DIN7603-12X18X1,5
20:-
5
46230024000 Lagerstatus: 4-6
DOWEL 12X9X14,5
40:-
6
46230123000 Lagerstatus: 1-3
DOWEL 17/12.1/9.5
40:-
7
46230023000 Lagerstatus: 1-3
DOWEL 10X8,2X10, Åtgår 2st
35:-
8
0835080355 Lagerstatus: 10
STUD DIN0835-M 8X35 10.9, Åtgår 2st
25:-
9
46030043000 Lagerstatus: 4-6
STUD M8X41, Åtgår 4st
30:-
10
0025080356 Lagerstatus: 11
HH collar screw M8x35 TX40
35:-
12
54634049000 Lagerstatus: 4-6
RETAINING PLATE
25:-
13
0025060106 Lagerstatus: 15
HH COLLAR SCREW M 6X10 WS=8
20:-
14
46230060000 Lagerstatus: 1-3
CHAIN SPROCKET GUARD
145:-
15
0025060306 Lagerstatus: 29
HH COLLAR SCREW M 6X30 SW=8
20:-
16
0603061001 Lagerstatus: 20
CU-SEAL RING DIN7603-6X10X1
15:-
17
58336020190 Lagerstatus: 1-3
VACUUM CONECTION M6/3MM 97
35:-
18
31007007101 Lagerstatus: hos lev.
PVC-HOSE 4X6MM
45:-
19
46230099000 Lagerstatus: 1-3
GASKET SET 65 SX 2009
1495:-
19
13-1104 Lagerstatus: 11
PACKNINGSSATS KTM 65SX 09-17
PACKNINGSSATS KTM 65SX 09-17

Dölj ytterligare info
599:-
20
0025060556 Lagerstatus: 14
HH collar screw M6x55 TX30, Åtgår 2st
20:-
21
0025060406 Lagerstatus: 8
HH COLLAR SCREW M 6X40 WS=8
20:-
22
0025060306 Lagerstatus: 29
HH COLLAR SCREW M 6X30 SW=8
20:-
23
0025060086 Lagerstatus: 13
HH collar screw M6x8 TX30
20:-
24
45230089000 Lagerstatus: 11
YDNAC-CLAMP 10068 (6,8MM)
10:-
99
46204060010 Lagerstatus: 4-6
SPROCKET COVER KIT
185:-
