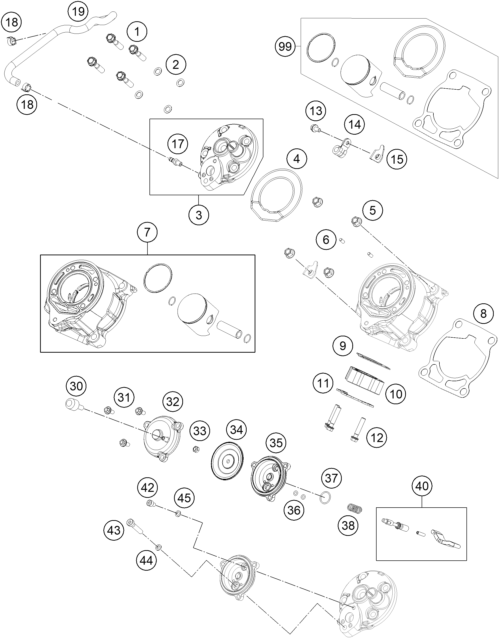

65 SX (2020) CYLINDER TOPPLOCK
SAMTLIGA DELAR
ORIGINALDELAR
EFTERMARKNADSDELAR
1
50430079000 Lagerstatus: hos lev.
CYL. HEAD BOLT M 7X30 WS=10, Åtgår 5st
35:-
2
0603070121 Lagerstatus: 25
CU-SEAL RING 7,3 X 12 X 0,5, Åtgår 5st
15:-
3
46230006000 Lagerstatus: hos lev.
CYLINDER HEAD
1255:-
4
45230036000 Lagerstatus: 13
CYLINDER HEAD GASKET
80:-
5
46030045000 Lagerstatus: 48
flanged nut M8 WS10, Åtgår 4st
40:-
6
0402040980 Lagerstatus: 1-3
NEEDLE ROL.DIN5402 NRB 4X9,8, Åtgår 2st
15:-
7
46230038000 Lagerstatus: hos lev.
CYLINDER + PISTON
5195:-
8
46230035020 Lagerstatus: 1-3
CYLINDER BASE GASKET 0,2 MM
80:-
8
46230035040 Lagerstatus: 1-3
CYLINDER BASE GASKET 0,4 MM
80:-
8
46230035050 Lagerstatus: 1-3
CYLINDER BASE GASKET 0,5 MM
80:-
8
46230035060 Lagerstatus: 1-3
CYLINDER BASE GASKET 0,6MM
80:-
9
46205004000 Lagerstatus: 7
EXHAUST PIPE FLANGE GASKET
75:-
10
46205003000 Lagerstatus: 1-3
EXHAUST FLANGE
265:-
11
46205003050 Lagerstatus: 1-3
BRACKET FOR SPRINGHOLDER
110:-
12
0025060306 Lagerstatus: 29
HH COLLAR SCREW M 6X30 SW=8
20:-
13
0025050106 Lagerstatus: hos lev.
HH collar screw M5x10 TX30
20:-
14
45001070000 Lagerstatus: 4-6
BRAKE CABLE CLAMP RSGU 9/12
35:-
15
46332060050 Lagerstatus: hos lev.
RETAINING PLATE CLUTCHHOSE
110:-
17
58336020190 Lagerstatus: 1-3
VACUUM CONECTION M6/3MM 97
35:-
18
59007017000 Lagerstatus: 10
CLAMP YDNAC 10096F (9,6MM), Åtgår 2st
10:-
19
46337014000 Lagerstatus: 1-3
HOSE EXHAUST CONTROL
295:-
30
46237036044 Lagerstatus: 4-6
VENTILATION CPL.
75:-
31
0014050163 Lagerstatus: 11
HH COLLAR SCREW M 5X16 WS=6, Åtgår 3st
20:-
32
46237035000 Lagerstatus: 1-3
CLOSING COVER
100:-
33
0985050003 Lagerstatus: 26
SELF LOCKING NUT DIN0985-M 5
15:-
34
46237013000 Lagerstatus: 1-3
MEMBRANE
270:-
35
46237011000 Lagerstatus: 1-3
FLANGE EXHAUST CONTROL
310:-
36
0770030015 Lagerstatus: 4-6
O-RING 3,00X1,50 NBR 70, Åtgår 2st
15:-
37
0770150151 Lagerstatus: 4-6
O-RING 15,00X1,50 VITON
30:-
38
46237074100 Lagerstatus: 8
ADJ. SPRING - EXHAUST CONTROL
15:-
40
46337020033 Lagerstatus: 18
CONTROL SLIDE SHAFT
475:-
42
0912050083 Lagerstatus: 9
SHCS DIN 912 M5x8
15:-
43
0012060303 Lagerstatus: hos lev.
AH SCREW DIN6912 M6X30 8.8
15:-
44
0603061001 Lagerstatus: 20
CU-SEAL RING DIN7603-6X10X1
15:-
45
0603050901 Lagerstatus: 14
COPPERT GASKET 5X9X1
15:-
99
00050000202 Lagerstatus: 1-3
PISTON KIT GR.I 65 SX/TC
1045:-
99
00050000203 Lagerstatus: 1-3
PISTON KIT GR.II 65 SX/TC
1045:-
