65 SX (2020) VÄXELMEKANISM
SAMTLIGA DELAR
ORIGINALDELAR
EFTERMARKNADSDELAR
1
0025050126 Lagerstatus: 27
HH collar screw M5x12 TX30
20:-
2
46234005110 Lagerstatus: 46
SHIFTING SHAFT FENDER RET. PL.
30:-
3
46234005144 Lagerstatus: 1-3
SHIFT SHAFT CPL.
815:-
4
0471140100 Lagerstatus: 1-3
retaining ring DIN 471 14x1
15:-
5
54634050000 Lagerstatus: 7
STOP DISK 14X30X1
25:-
6
54834014000 Lagerstatus: 4-6
RETURN SPRING 03
30:-
7
54634020000 Lagerstatus: 1-3
SPRING GUIDE
55:-
8
56534013100 Lagerstatus: 4-6
TENSIONING SPRING 0,8MM
20:-
9
49033013000 Lagerstatus: 1-3
STOP DISK 12,1X25X1
25:-
10
46034027000 Lagerstatus: hos lev.
NEEDLE BEARING 12X18X12 2002, Åtgår 2st
50:-
11
0760122050 Lagerstatus: 10
SHAFT SEAL RING 12X20X5 B
45:-
12
46234031044 Lagerstatus: 1-3
SHIFTING LEVER CPL.
545:-
12

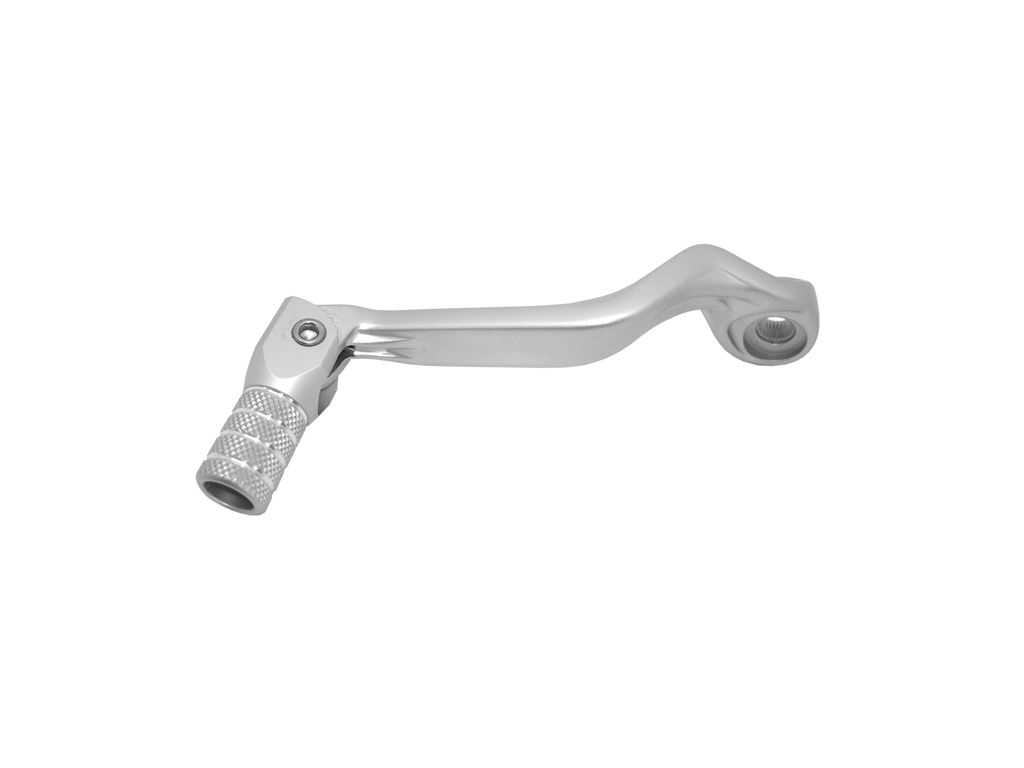

06-1502-1 Lagerstatus: 23
VÄXELSPAK KTM 65SX 09-15
VÄXELSPAK KTM 65SX 09-15

Dölj ytterligare info
175:-
14
0024060156S Lagerstatus: 13
HH collar screw M6x15 TX30
20:-
15
50233041500 Lagerstatus: 10
PAIR NORDLOCK WASHER M6
20:-
16
46234008044 Lagerstatus: 1-3
SLIDING PLATE CPL.
105:-
18
58038023200 Lagerstatus: 4-6
PRESSURE SPRING 0,9MM, Åtgår 4st
60:-
19
46234019000 Lagerstatus: 1-3
SHIFTING RAIL COUNTER SHAFT
140:-
20
46234020000 Lagerstatus: 1-3
SHIFTING RAIL MAIN SHAFT
115:-
21
0402061000 Lagerstatus: 4-6
NEEDLE ROLLER ZRB 6X10, Åtgår 3st
15:-
22
46234001000 Lagerstatus: 1-3
SHIFT FORK MAIN SHAFT
565:-
23
46234002000 Lagerstatus: 1-3
SHIFT FORK COUNTERSHAFT R/S
565:-
24
46234003000 Lagerstatus: 1-3
SHIFT FORK COUNTERSHAFT Ll/S
565:-
30
0912060303 Lagerstatus: 12
AH SCREW DIN0912-M 6X30
15:-
31
46234015100 Lagerstatus: 1-3
Shift drum location cpl.
430:-
32
0625618050 Lagerstatus: hos lev.
BALL BEARING 61805 C3
175:-
33
46234012033 Lagerstatus: 1-3
SHIFT ROLLER CPL.
945:-
34
0625069034 Lagerstatus: hos lev.
BALL BEARING 6903 C4
125:-
35
54834023000 Lagerstatus: 1-3
LOCKING LEVER SPRING 03
35:-
36
54634052300 Lagerstatus: 4-6
SLEEVE FOR LOCKING LEVER
30:-
37
50334024144 Lagerstatus: 1-3
LOCATING LEVER CPL. 08
220:-
38
0349000050 Lagerstatus: 1-3
WASHER DIN7349-5X15X2
10:-
39
0025050206 Lagerstatus: 11
HH collar screw M5x20 TX30
20:-
